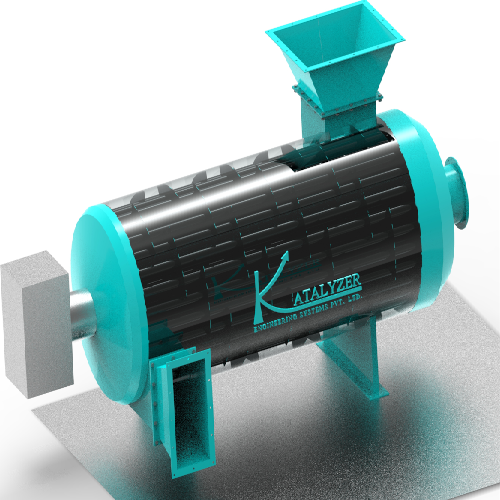

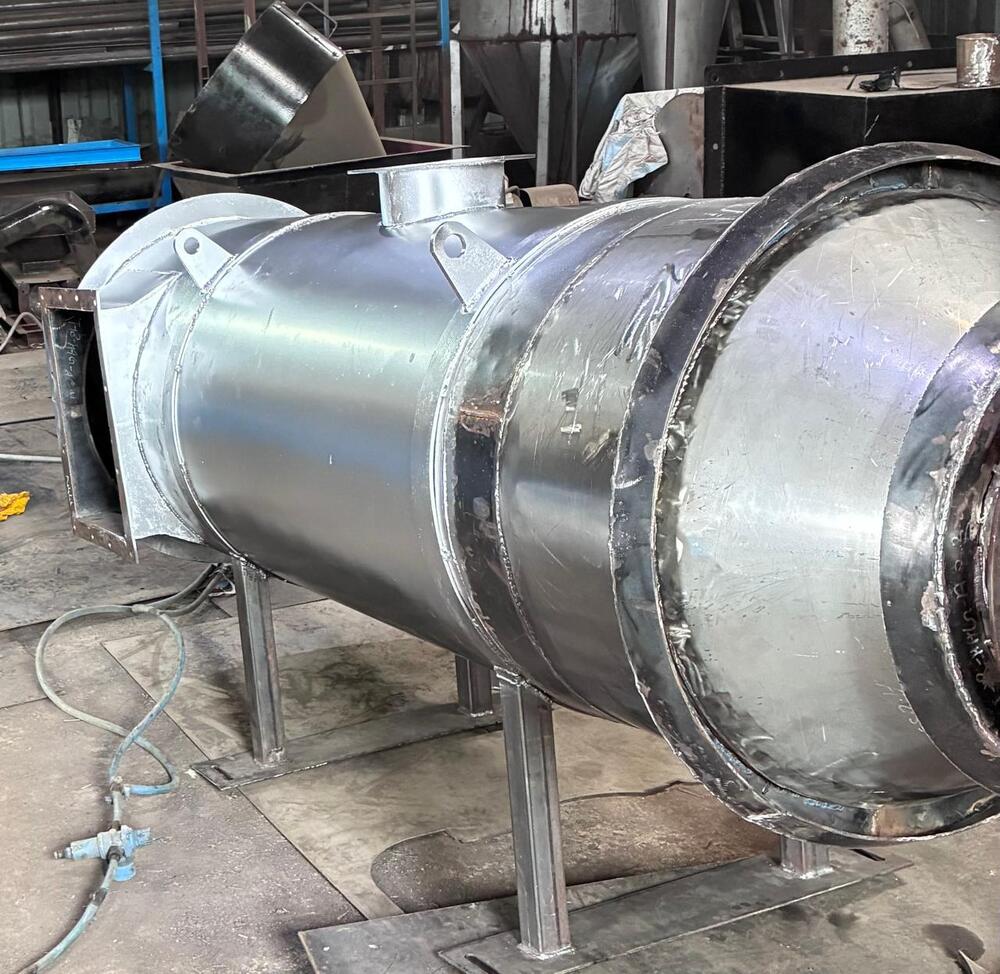

Hot Air Generator

Product Description

Frequently Asked Questions “ Direct Fired Hot Air Generator

1. What is the model type of this hot air generator?
This is a Direct Fired Hot Air Generator, designed for high-efficiency industrial heating applications.

2. What fuel types can be used?
It is compatible with multiple fuel options:

• Diesel

• LPG (Liquefied Petroleum Gas)

• PNG (Piped Natural Gas)

• Furnace Oil

3. What is the heat output capacity range?
The heat output ranges from 50,000 kcal/hr to 15,00,000 kcal/hr, depending on the model selected.

4. What air temperature can it deliver?
The system can deliver air temperatures up to 550C, and this is adjustable as per process requirements.

5. What is the thermal efficiency of the unit?
The typical thermal efficiency is around 98%, which is standard for direct-fired systems due to minimal heat loss.

6. What materials are used in the construction?
The generator is constructed using Mild Steel or Stainless Steel, and comes with high-temperature insulation for heat retention and safety.

7. What kind of burner does it use?
It uses a fully automatic, high-efficiency mono-block pressure jet burner for reliable and efficient combustion.

8. How does the combustion system work?
The system is designed so that the flame directly mixes with process air, enabling rapid and efficient heating.

9. What kind of control system is included?
The unit features a digital temperature controller with auto ignition and built-in safety interlocks for secure operation.

10. What are the typical application areas?
It is widely used in:

• Rotary dryers

• Spray dryers

• Ovens

• Tray dryers

• Boilers

• And various other industrial heating systems

11. How is the unit installed?
The generator can be skid-mounted or floor-mounted, depending on the customer™s space and installation preferences.
